Scenario

Analyze Excel 4.0 macros using XLMDeobfuscator and OLEDUMP to identify anti-analysis techniques and subsequent stage download attempts.

Instructions:

Uncompress the lab (pass: cyberdefenders.org)
Zip sha256: 35fb4497de1633d6887fd1453ee1426ca627eeec
Zip size: 74 KB

Scenario: Recently, we have seen a resurgence of Excel-based malicious office documents. However, instead of using VBA-style macros, they are using older style Excel 4 macros. This changes our approach to analyzing these documents, requiring a slightly different set of tools. In this challenge, you, as a security blue team analyst will get hands-on with two documents that use Excel 4.0 macros to perform anti-analysis and download the next stage of the attack.

Samples:

Sample1: MD5: fb5ed444ddc37d748639f624397cff2a
Sample2: MD5: b5d469a07709b5ca6fee934b1e5e8e38

Questions

Q1 — Sample1 Document Decryption Password

Sample1: What is the document decryption password

To get started, let’s just validate the checksum first.

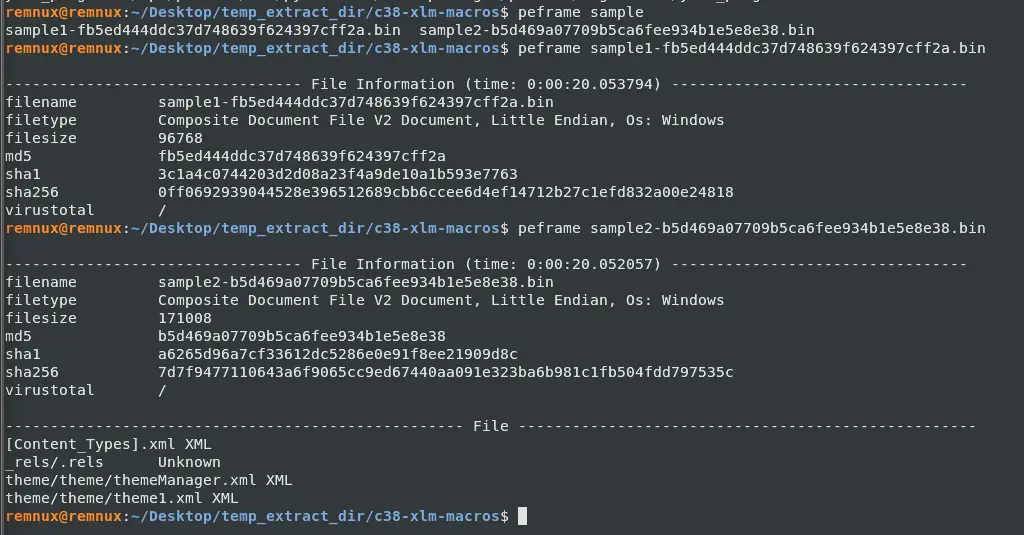

The checksums for the samples match but the zip file does not. This is to be expected as the samples were probably zipped again, causing the hash to be different. Anyways, we will run these files through PEFrame.

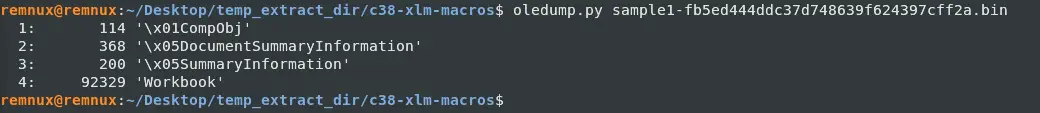

Both files are OLE structured storage. However, notice how nothing was immediately caught by peframe whereas for maldoc101, another CyberDefenders challenge, this step immediately gave us a few hints. This is likely due to what is described in the scenario. The malware is using Excel 4.0 macros which are older and actually predate VBA. This leaves little to nothing for peframe to flag which results in the short output. Let’s try passing the first sample to oledump and see what we get.

This does not really tell us much because oledump operates at the OLE container level whereas XLM macros (i.e. Excel 4 Macros) live inside the workbook itself. While oledump has a plugin specifically for this, there is a dedicated tool that does a better job at finding these XLM macros. Let’s use XLMDeobfuscator.

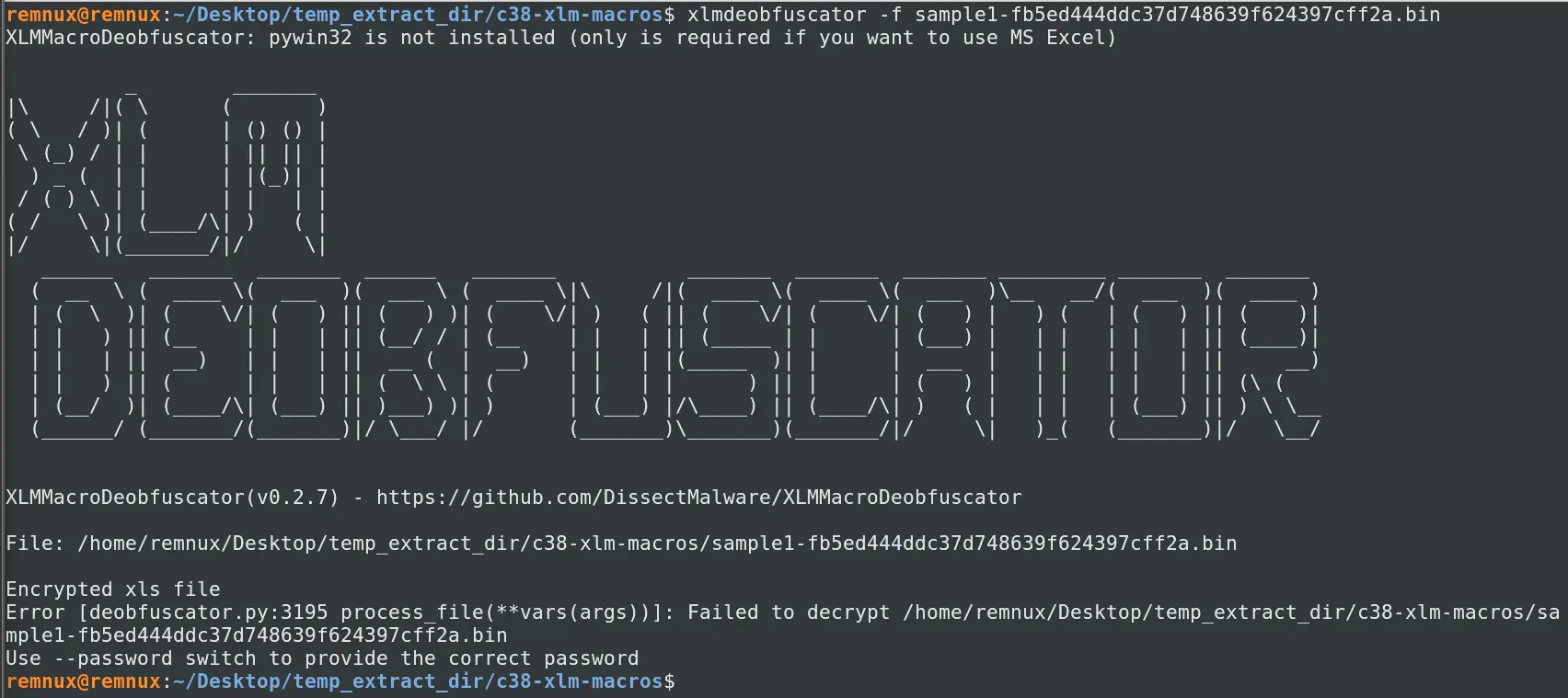

When we try to pass the first sample in, it states it needs a password.

One interesting thing to note before we start this though, is that the password VelvetSweatshop is unique because Microsoft built that password in. Whenever Excel encounters an encrypted file, it silently tries VelvetSweatshop before prompting the user for a password. If this decryption works, the file just opens with no dialog. Why is this significant? Because the encryption means that it is harder to detect the payload but to the end user, it is trivially opened with no password required. Malware authors abuse this a lot as an evasion technique for this specific reason.

Let’s try to crack the password of sample1 file using msoffcrypto-crack.py, which gives us the password.

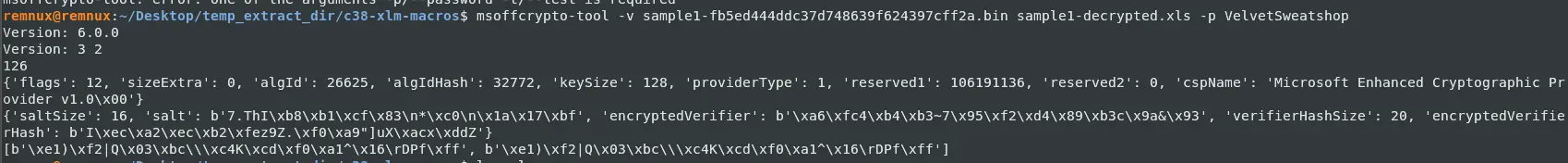

Unsurprisingly, the password is VelvetSweatshop. Let’s get the decrypted xls by using msoffcrypto-tool.

So now we have the decrypted version of the file and we determined the password.

Answer: VelvetSweatshop

Q2 — Sample1 Hidden Sheet Name (S-prefixed)

Sample1: This document contains six hidden sheets. What are their names? Provide the value of the one starting with S.

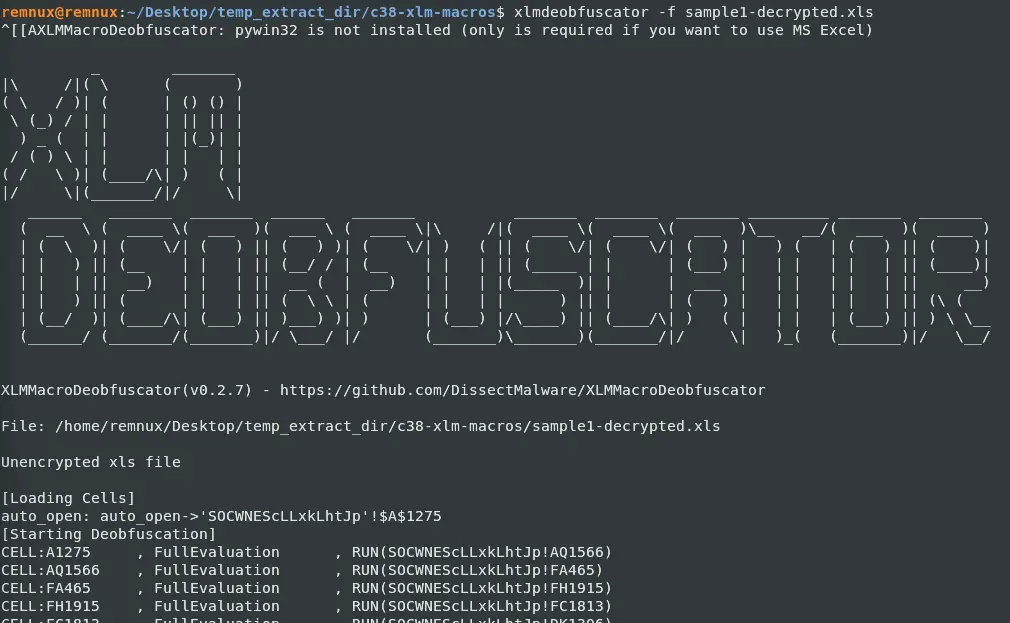

With the decrypted xls we can now run this through XLMDeobfuscator to see what we can get.

We can see that the file auto opens a sheet named SOCWNEScLLxkLhtJp and this line also gives us the entry point of the malware which is $A$1275.

Answer: SOCWNEScLLxkLhtJp

Q3 — Sample1 Next-Stage Download URL

Sample1: What URL is the malware using to download the next stage? Only include the second-level and top-level domain. For example, xyz.com.

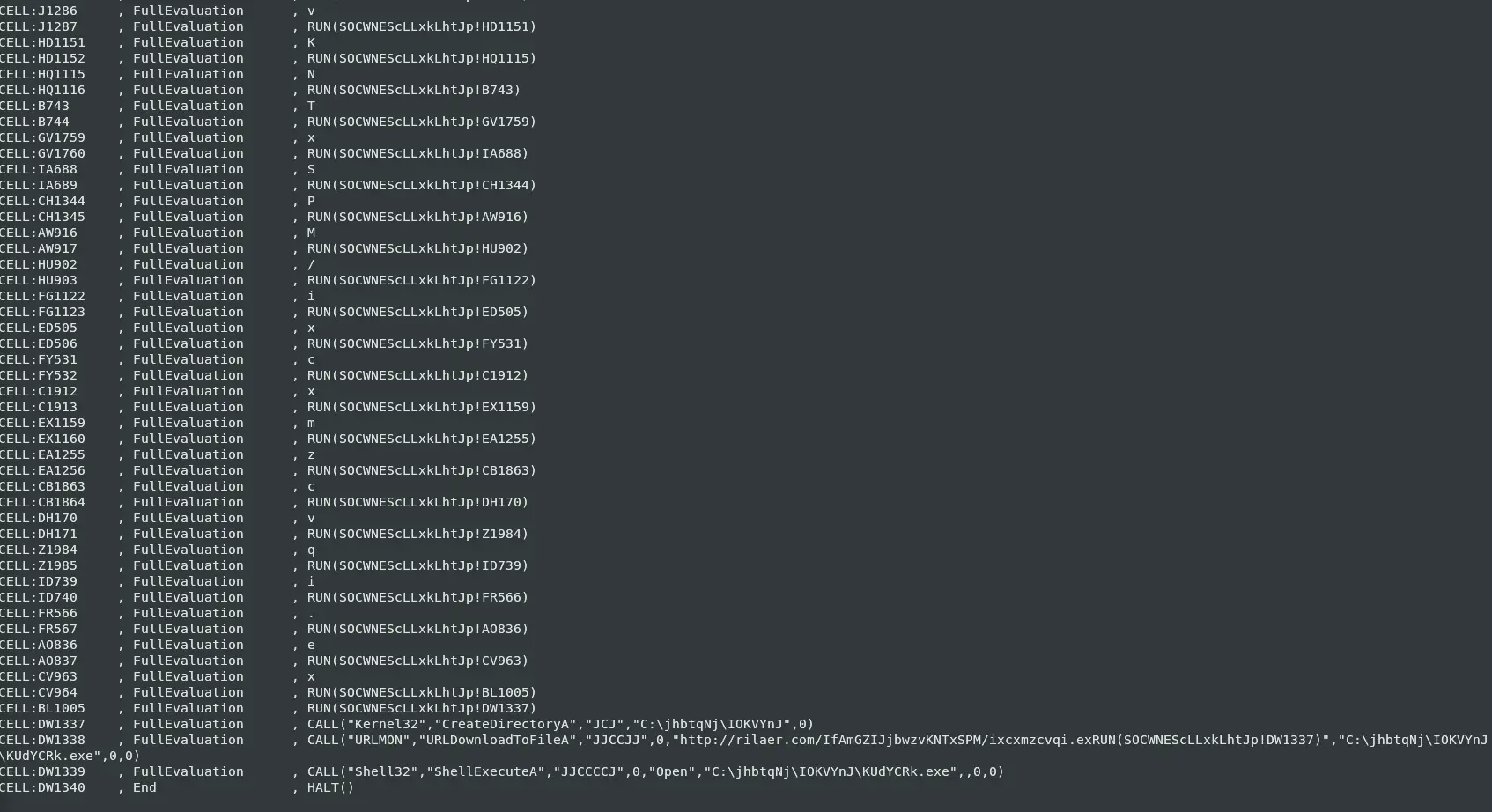

If we scroll down further in the XLMDeobfuscator output, we will see that it creates a directory using this call

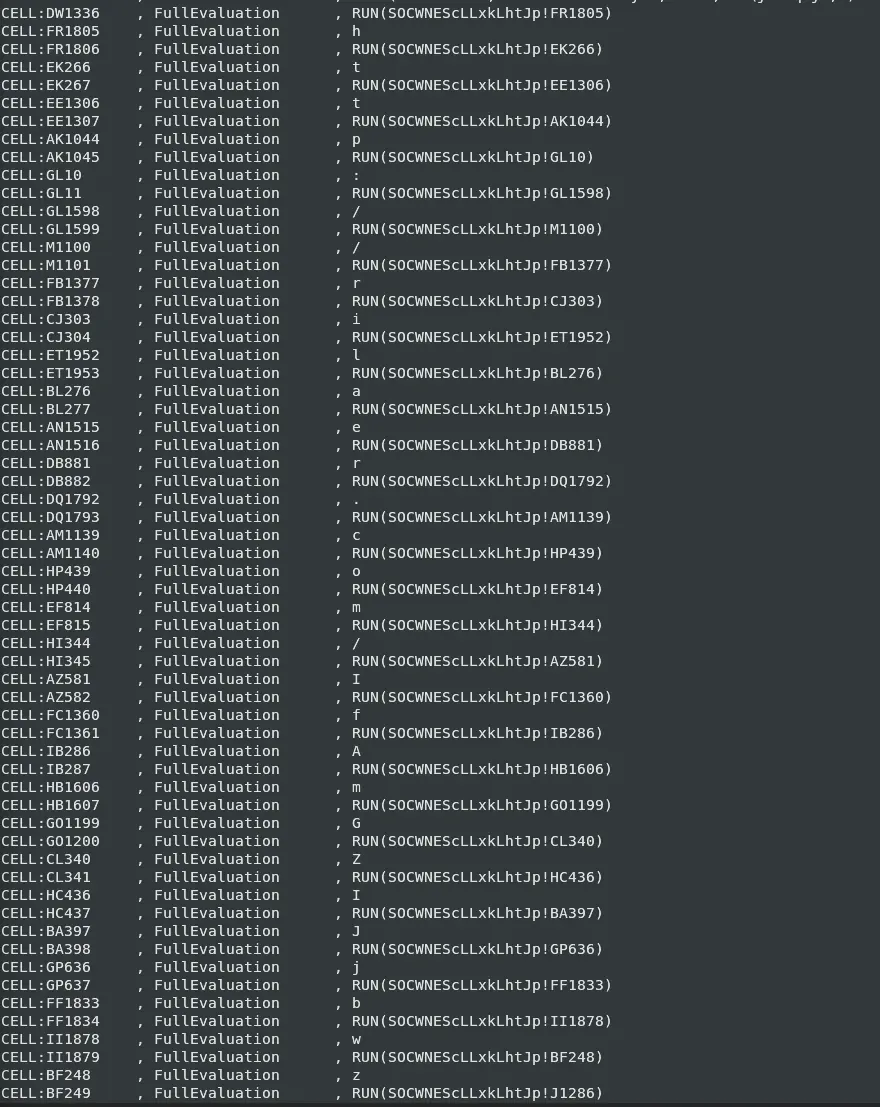

And just under that is a URL that is constructed using different cells

This URL is called in the last few lines and when we put everything together, sample1:

Creates a new directory C:\jhbtqNj
Creates a sub directory C:\jhbtqNj\IOKVYnJ
Downloads a file from a malicious domain, http://rilaer.com, and writes it into the C:\jhbtqNj\IOKVYnJ with name KUdYCRk.exe
It then executes the downloaded payload

The next-stage download URL is http://rilaer.com.

Answer: http://rilaer.com

Q4 — Sample1 Malware Family

Sample1: What malware family was this document attempting to drop?

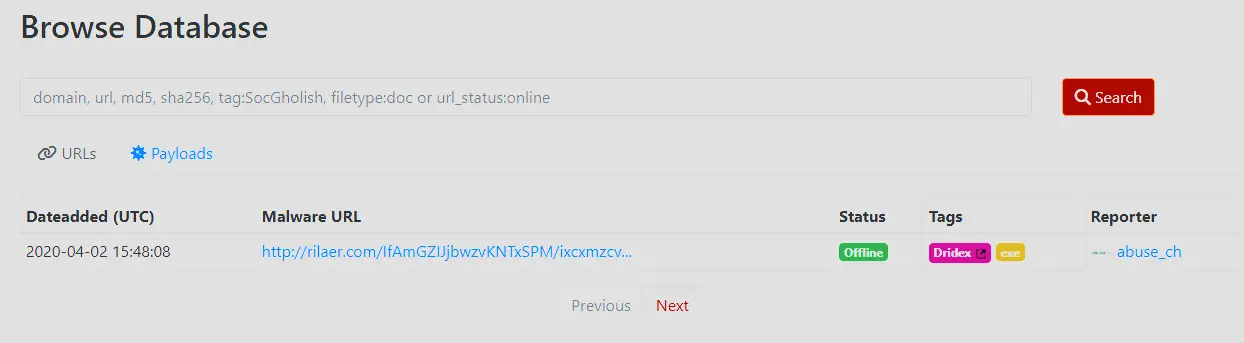

To determine what type of malware is this we can go to URLhaus and search for the domain we found.

We found it. This malware belongs to Dridex.

Answer: Dridex

Q5 — Sample2 Very Hidden Sheet Name

Sample2: This document has a very hidden sheet. What is the name of this sheet?

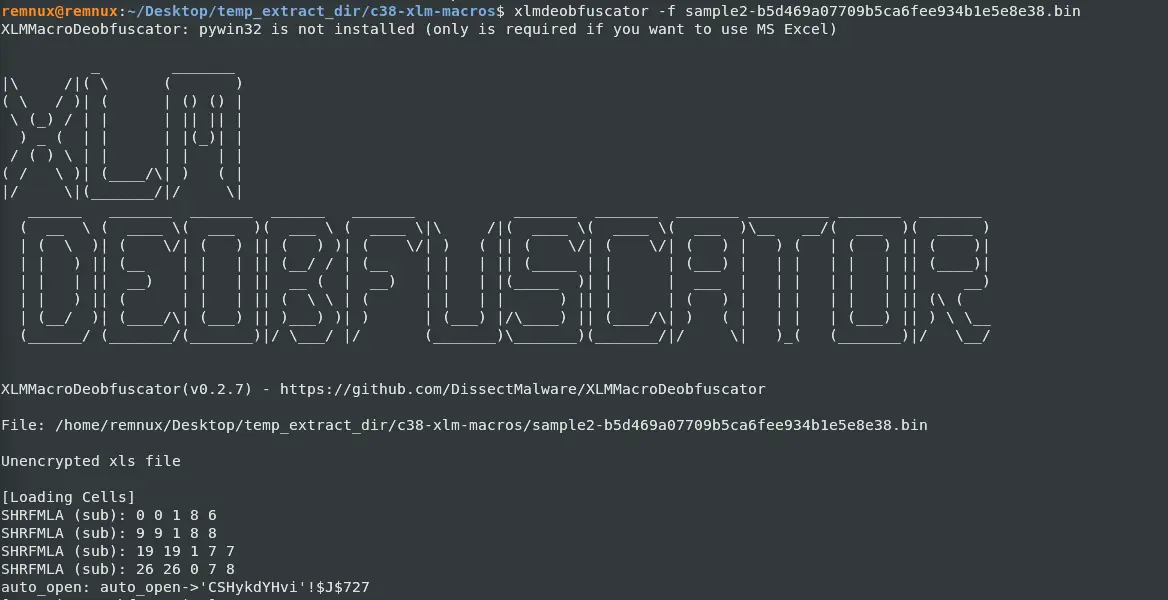

Let’s run sample2 through XLMDeobfuscator and see what output we get.

This file was not encrypted and we can see that it auto opens CSHykdYHvi with an entry point $J$727. If we scroll down, we will see that this malware is trying to hide this sheet as well.

Furthermore, the second argument being TRUE means that the sheet is set to be very hidden.

Answer: CSHykdYHvi

Q6 — Sample2 reg.exe Registry Key

Sample2: This document uses reg.exe. What registry key is it checking?

Apart from hiding this work sheet, it also seems to access the registry.

It is accessing HKCU\Software\Microsoft\Office\GET.WORKSPACE(2)\Excel\Security. To understand what this means, we need to grab a reference for GET.WORKSPACE, which as we will see soon enough, is used a lot in this file. I will be referring to this GET.WORKSPACE.

Using the reference, we can see that HKCU\Software\Microsoft\Office\GET.WORKSPACE(2)\Excel\Security means he is grabbing the current version of Excel so he can access the registry keys under security. There are a few registry keys under Security but the key it is likely referencing is VBAWarnings.

I found this out through Google when I was trying to determine what subkeys Security has.

windows - Help me find the reg-key which is preventing me from chaning excel macro security-level? - Stack Overflow

The stack overflow question linked above really helped to deduce this because the original poster was looking for a way to set the macro security to be the lowest due to his test-framework requiring it. The key point here was he is trying to lower the macro security as much as possible and the first answer to his question directly references \Security\VBAWarnings.

Therefore, I deduced that it is likely that this was the key that the malware author was referencing. I will elaborate further in the next question.

Answer: VBAWarnings

Q7 — Sample2 Sandbox Indicator Value

Sample2: From the use of reg.exe, what value of the assessed key indicates a sandbox environment?

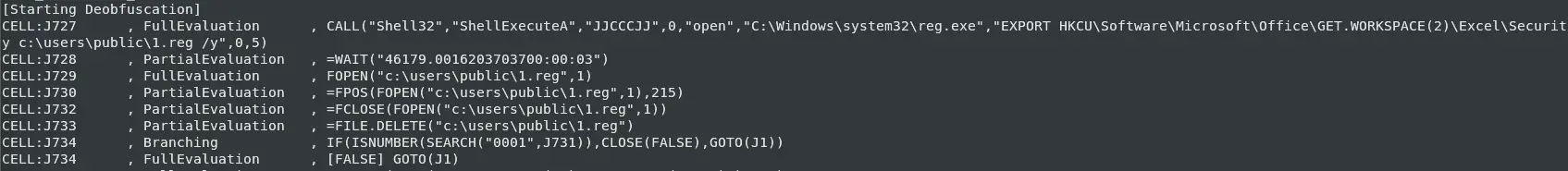

From examining the code, we can see that it has branches in its execution.

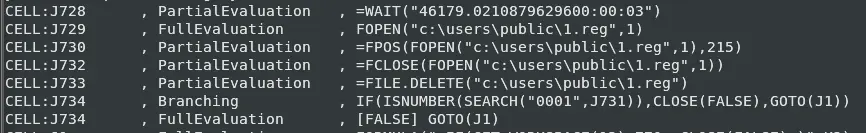

If we look at J734 in particular we can see that the malware is checking if VBAWarning is already set to 0x1 and if it is, it closes the program. Otherwise, jump to the next instruction at J1.

It is likely that it is checking this value to be 0x1 because that means that Excel has the macro security set as low as possible. This is an anomaly for legitimate machines as this registry key is almost never set as this value, it is way too permissive. Furthermore, in the last question, we found a stack overflow question where the original poster had to go through great lengths to even try to enable this. Therefore, if this value is set, the rationale is probably that the machine it is running on is not a legitimate victim machine and is instead an analysis or sandbox environment.

Answer: 0x1

Q8 — Sample2 Anti-Analysis Macro Function

Sample2: This document performs several additional anti-analysis checks. What Excel 4 macro function does it use?

If we look back at our GET.WORKSPACE reference, we can easily start to see why this function keeps showing up. GET.WORKSPACE allows the malware author to check if the program is running in a legitimate user environment. For instance,

GET.WORKSPACE(13) : checks the usable workspace width in pixels GET.WORKSPACE(14) : checks the usable workspace height in pixels

Therefore, it is checking if the usable workspace is a certain size in pixels, otherwise it halts the execution. This is likely because automated analysis environments will have a workspace much smaller than what it is checking for since the display is not needed in those environments. A legitimate user, on the other hand, is likely to have the application in a proper resolution so the values are readable.

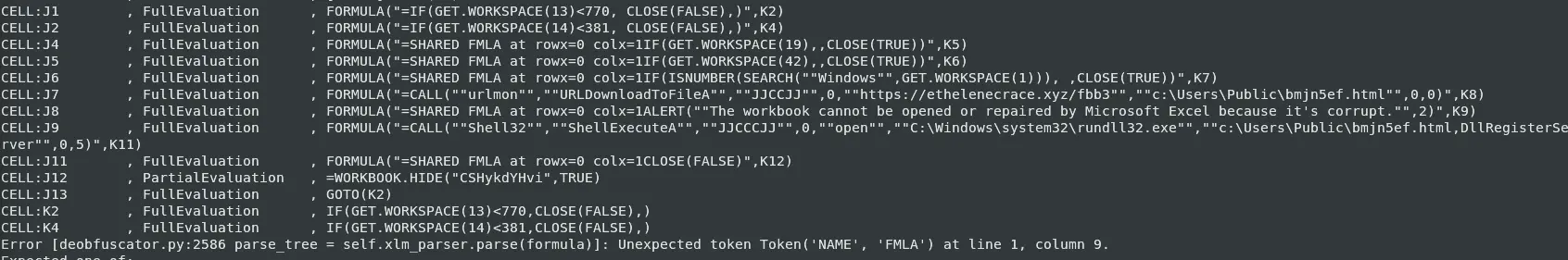

If we explore the rest of the code we can see it makes liberal use of GET.WORKSPACE and if we translate them we get the following,

GET.WORKSPACE(19) : Check if a mouse is present GET.WORKSPACE(42) : Check if the computer is capable of playing sound GET.WORKSPACE(1) : Check the name of the environment in which Excel is running. It checks if it is ‘Windows’.

This shows just how much effort the malware author went through to really make sure the device it is running in is a legitimate user work station.

Answer: GET.WORKSPACE

Q9 — Sample2 Environment Name Comparison Value

Sample2: This document checks for the name of the environment in which Excel is running. What value is it using to compare?

We saw this in the previous question, particularly in CELL:J6. It uses GET.WORKSPACE(1) to check the name of the environment in which Excel is running, and it checks that value against ‘Windows’.

Answer: Windows

Q10 — Sample2 Payload Type

Sample2: What type of payload is downloaded?

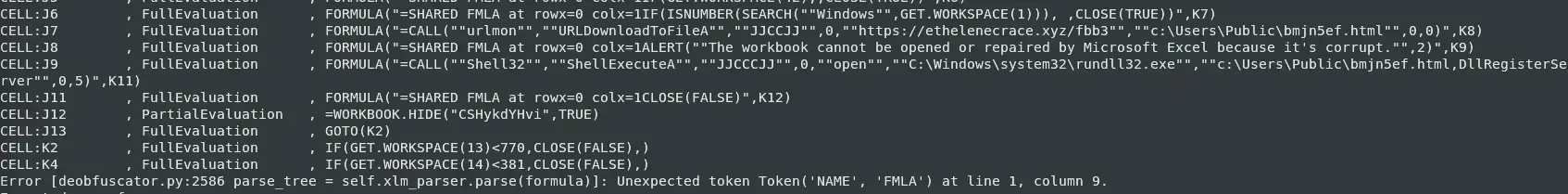

After it passes the anti-analysis checks, it downloads a payload as seen below,

The URL downloads itself as an HTML file but later calls rundll32.exe to execute the file. Therefore, the payload is DLL.

Answer: DLL

Q11 — Sample2 Payload Download URL

Sample2: What URL does the malware download the payload from?

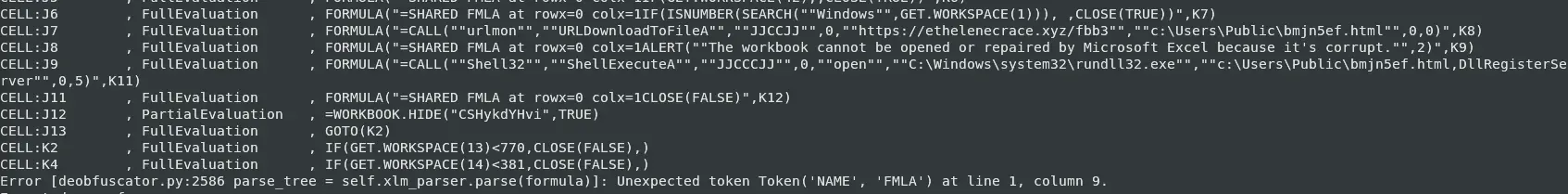

We can also see from this snippet of code the URL that the malware downloads from.

Which is https://ethelenecrace.xyz/fbb3

Answer: https://ethelenecrace.xyz/fbb3

Q12 — Sample2 Payload Saved Filename

Sample2: What is the filename that the payload is saved as?

From the same snippet of code and call we can see the file saves itself as bmjn5ef.html. This was probably done to make the file seem benign. Furthermore, rundll32.exe does not care what the file extension is; it will just run the file as a DLL.

Answer: bmjn5ef.html
