SURICATA-BR01

SURICATA-BR01 is the network intrusion detection sensor for the lab. It sits inline on LAN_NET as a Linux bridge, meaning all traffic passing through it is transparently forwarded. Suricata listens on the bridge interface (br01) and writes alerts to eve.json, which are forwarded to WAZUH-SIEM01 for analysis.

VM Hardware Configuration

Feature Configuration
OS Ubuntu Server 22.04.5
vCPU 2
RAM 4 GB
Disk 50 GB
Network LAN_NET (Static IP: 192.168.20.30)

[!IMPORTANT] In VirtualBox, one NIC must be attached to PFSENSE_LAN_NET and the other to LAN_NET. This split is intentional — it’s a workaround for a VirtualBox limitation that forces all traffic through the Linux bridge on SURICATA-BR01 before it reaches the rest of LAN_NET.

OS Installation & Configuration

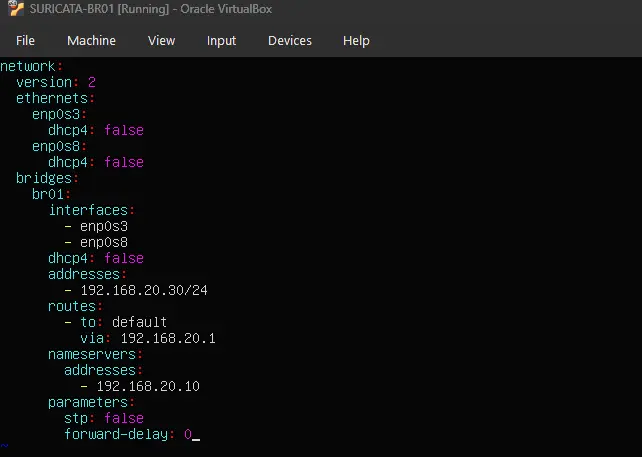

Network Configuration (Netplan)

Set a static IP before doing anything else. This follows the same approach as other Linux machines in the lab — configured via Netplan.

sudo su -

cd /etc/netplan

# File name prefix determines load order — use a number lower than any existing configs
touch 01-SURICATA-BR01-config.yaml
chmod 600 01-SURICATA-BR01-config.yaml

netplan apply

# Verify
ip a
resolvectl status

Configuration Summary:

Interface Segment IP Address Gateway DNS Server
br01 LAN_NET 192.168.20.30/24 192.168.20.1 192.168.20.10

Bridge Interface Setup

SURICATA-BR01 uses a Linux bridge (br01) as its primary interface. The two physical NICs are added as bridge members in Netplan — all traffic flowing between them passes through br01, which is where Suricata listens.

Interface Assignment

Promiscuous mode must be enabled on both NICs. Without it, VirtualBox will only deliver frames addressed directly to each NIC’s MAC address — the bridge will never see traffic it needs to forward, and Suricata will miss everything. Set each NIC to Allow All under the Advanced network settings in VirtualBox.

[!IMPORTANT] SURICATA-BR01’s two NICs are attached to different VirtualBox internal networks — one to PFSENSE_LAN_NET and the other to LAN_NET. This is intentional: VirtualBox does not allow a single internal network to be bridged transparently, so splitting across two named networks is what forces all traffic through the Linux bridge on SURICATA-BR01 before it reaches the rest of LAN_NET.

Disabling br_netfilter

The br_netfilter kernel module causes the kernel to pass bridge traffic through iptables before Suricata ever sees it. This can silently drop or alter packets, resulting in incomplete or inaccurate detections. We disable it so Suricata always sees the raw, unmodified traffic on the wire.

The sysctl.conf changes below are only needed if br_netfilter is currently loaded.

# Load the module first so the sysctl keys exist
sudo modprobe br_netfilter

# Disable bridge traffic from being processed by iptables
sudo sysctl -w net.bridge.bridge-nf-call-iptables=0
sudo sysctl -w net.bridge.bridge-nf-call-ip6tables=0

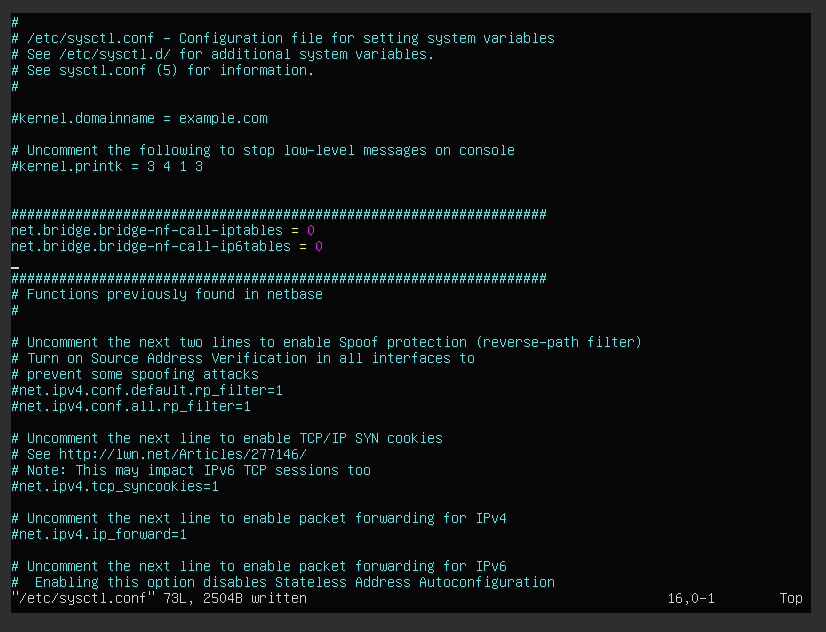

# Persist the changes
sysctl -p

# Unload the module
sudo modprobe -r br_netfilter

# Blacklist it from loading on boot
echo "blacklist br_netfilter" | sudo tee /etc/modprobe.d/no-bridge-nf.conf

DNS Registration in DC01

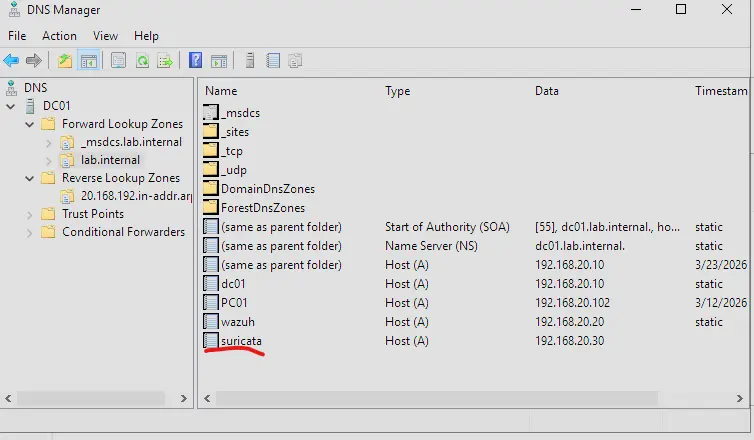

Adding the A Record and PTR

  1. Open DNS Manager on DC01
  2. Expand DC01 → Forward Lookup Zones → right-click lab.internal → New Host (A or AAAA)

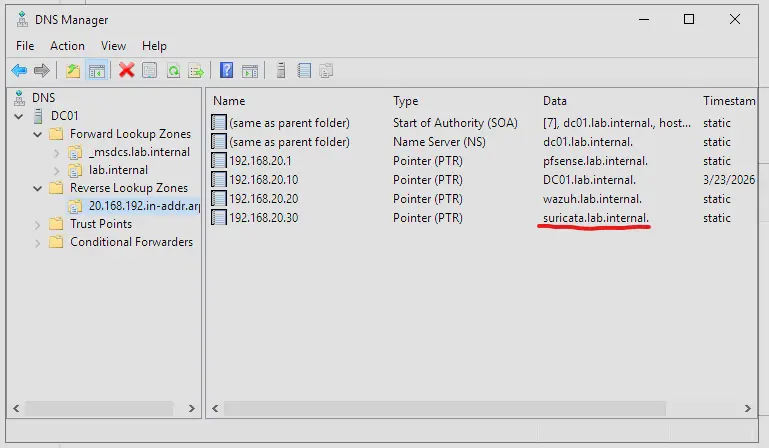

  3. Set the following values and check “Create associated pointer (PTR) record”
Field Value
Name suricata
IP 192.168.20.30

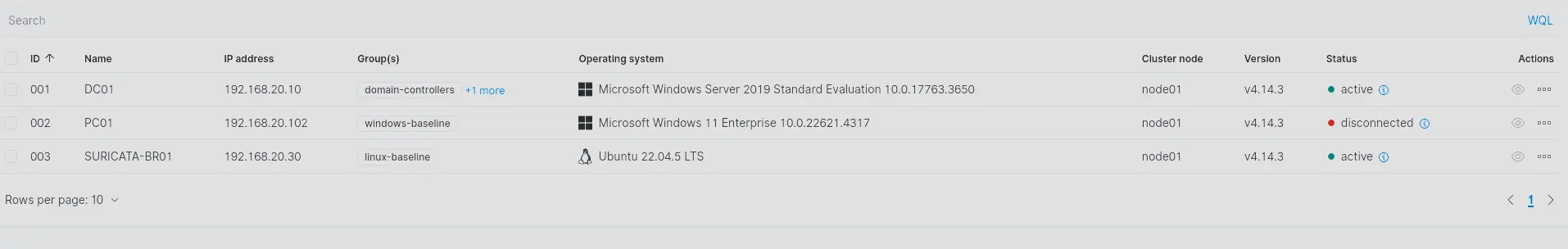

Wazuh Agent Installation

Install the Wazuh agent and register it against the manager before installing Suricata. The eve.json log source is added to the agent config later via the suricata agent group.

wget https://packages.wazuh.com/4.x/apt/pool/main/w/wazuh-agent/wazuh-agent_4.14.3-1_amd64.deb && sudo WAZUH_MANAGER='wazuh.lab.internal' WAZUH_AGENT_GROUP='linux-baseline' WAZUH_AGENT_NAME='SURICATA-BR01' dpkg -i ./wazuh-agent_4.14.3-1_amd64.deb

sudo systemctl daemon-reload
sudo systemctl enable wazuh-agent
sudo systemctl start wazuh-agent

Suricata Installation

Install Suricata from the OISF stable PPA, following the official quickstart guide.

sudo apt-get install software-properties-common
sudo add-apt-repository ppa:oisf/suricata-stable
sudo apt update
sudo apt install suricata jq

Configuration

Edit /etc/suricata/suricata.yaml and set the following:

  • Set the af-packet interface to br01

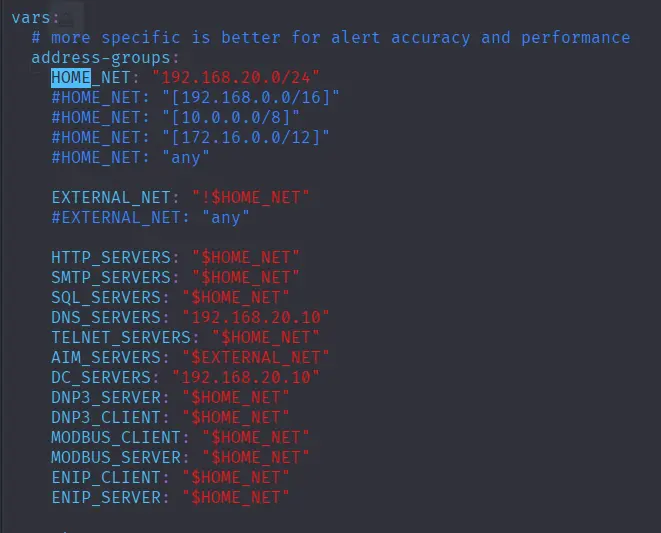

  • Set HOME_NET to the LAN segment: 192.168.20.0/24
  • Add DC01 and DNS server addresses
# Confirm the bridge interface name before editing
ip a

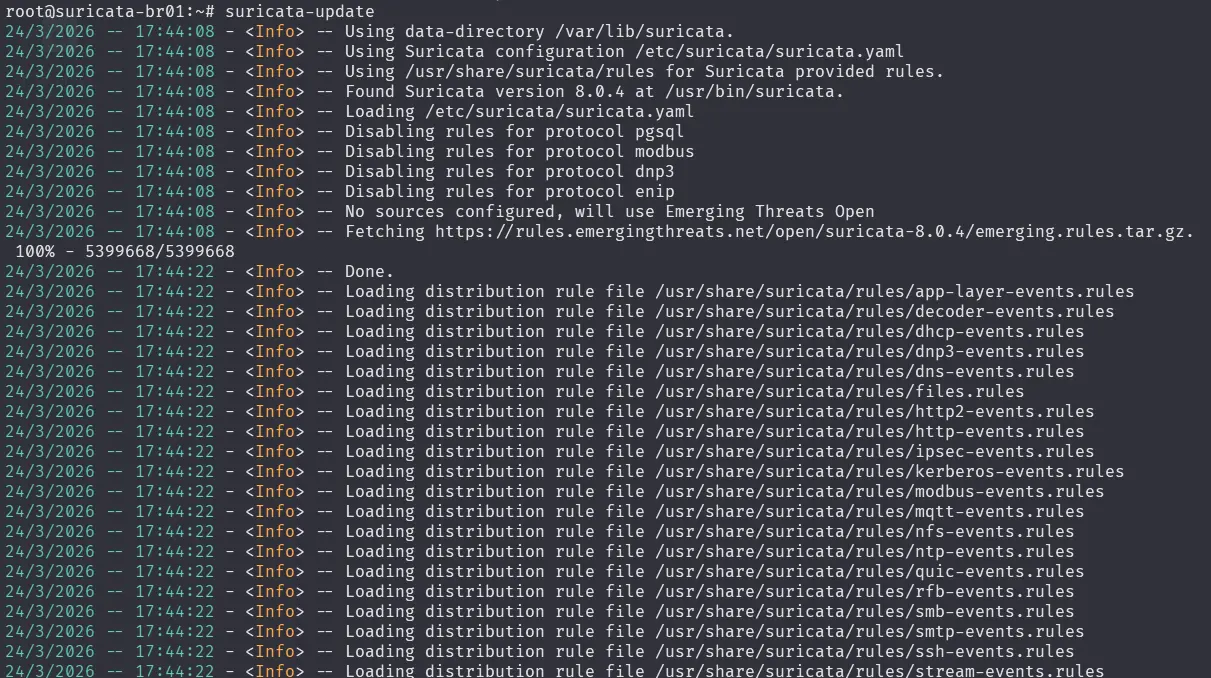

Updating Rules

Run suricata-update to pull the latest ruleset before starting the service.

[!NOTE] When suricata pulls these rules it is consolidated into a single suricata.rules file. You can find this by default in /var/lib/suricata/rules.

Configuring Wazuh Agent to Ingest eve.json

With both Suricata and the Wazuh agent running, the agent needs to be told to monitor eve.json — this isn’t configured by default.

Rather than editing the config directly on the machine, we create a dedicated agent group (suricata) so the configuration is centrally managed from the Wazuh dashboard. There’s only one Suricata machine in this lab but it’s still the right approach — it keeps all agent configuration in one place.

Navigate to Agent Management → Groups at https://wazuh.lab.internal:

  1. Create a new group: suricata
  2. Add SURICATA-BR01 to the group
  3. Edit the group’s agent.conf and add:
<localfile>
  <log_format>json</log_format>
  <location>/var/log/suricata/eve.json</location>
</localfile>

Handling the analysisd “Too Many Fields” Error

eve.json is verbose by default — HTTP events and DNS responses in particular produce deeply nested JSON with a large number of fields. Wazuh’s analysisd enforces a hard cap on how many JSON fields it will parse per event, and with default settings it rejects these events entirely.

Two changes are needed to fix this:

1. On WAZUH-SIEM01 — increase the analysisd field limit in /var/ossec/etc/local_internal_options.conf:

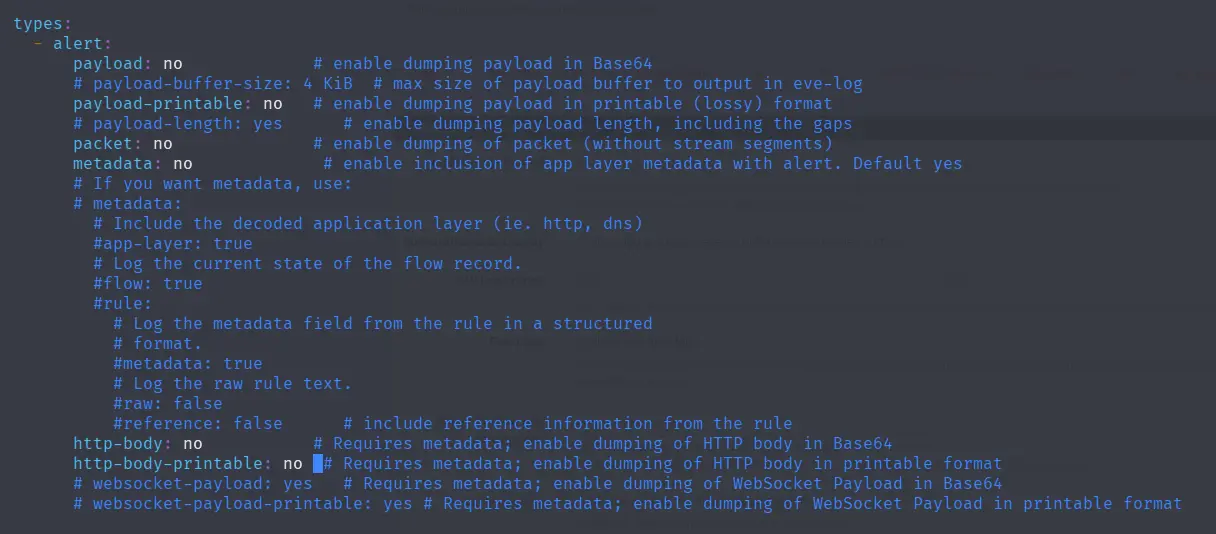

2. On SURICATA-BR01 — reduce eve.json verbosity in /etc/suricata/suricata.yaml by trimming the HTTP and DNS output fields:

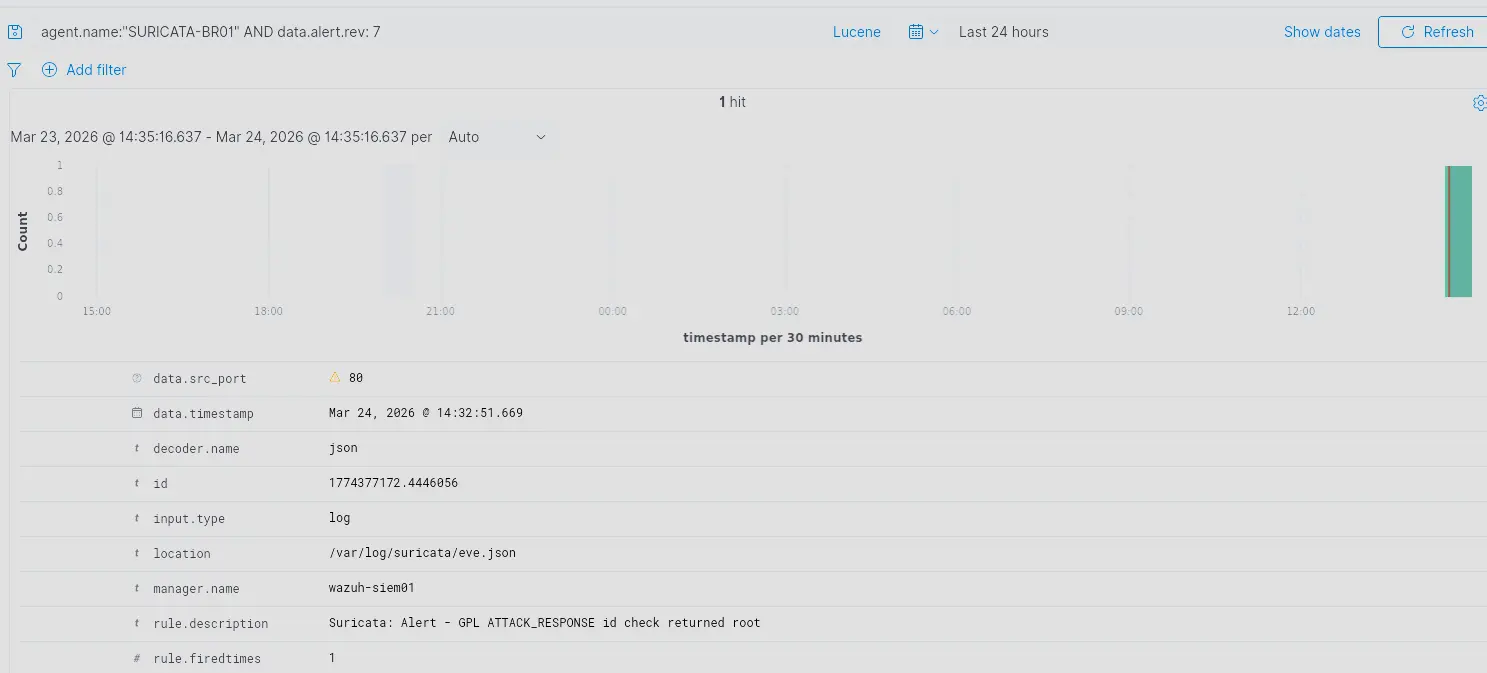

Verifying eve.json Logs Reach Wazuh

Use the OISF test URL to trigger a known Suricata signature. Suricata should detect the request and generate an alert that appears in Wazuh.

curl http://testmynids.org/uid/index.html

Troubleshooting

wazuh-agent Killed by systemd on Boot

On boot, wazuh-agent can start before br01 is fully up. The agent gets stuck trying to open a socket, and if systemd’s TimeoutStartSec is short enough it interprets this as a failed start and kills the process.

The fix is a systemd override that:

  • Waits for br01 to be up before allowing the agent to start
  • Automatically restarts the agent if it fails, with a 10-second delay between retries
systemctl edit wazuh-agent

1103

2-Minute Boot Delay

systemd-networkd-wait-online blocks the boot process until all managed interfaces reach an online state. Since br01 takes time to form and may not satisfy its online criteria immediately, the service times out after its default 2-minute timeout — stalling the entire boot.

The fix is to pass --any, which unblocks boot as soon as any interface comes online rather than waiting for all of them.

Two changes are needed in the override — ExecStart must be cleared first before being overwritten, otherwise systemd appends to the existing value instead of replacing it:

systemctl edit systemd-networkd-wait-online.service
